Type 2 Packaging Machines

ATOMAX OPEN TRAY is a wrap-around case packing system designed for self-supporting products that can be palletized without a fully enclosed case.

The machine provides fully automated packaging in open-tray cases. Depending on the application, the same machine can be configured to handle both open-tray cases and fully closed cases.

ATOMAX OPEN TRAY is designed for demanding 24/7 production environments in the dairy, meat, chemical and other industries.

The system automatically forms the case, prepares and groups the incoming products, loads them into the case, and folds and seals the required case flaps around the product group.

The machine operates using PLC-based controls and predefined production programs. High-speed versions are servo-driven to provide precise motion and high production capacity.

Case type: flat pre-cut cardboard blank.

Case sealing: hot-melt adhesive.

ATOMAX OPEN TRAY is an indexing-motion case packer that can be manually adjusted for different case dimensions. Tool-free format changeover can be completed in approximately 20 minutes.

Automatic format changeover is available upon request.

ATOMAX is a family of wrap-around case packers available in several configurations, including full wrap-around cases, open-tray solutions and dual-case loading systems. Each configuration is engineered for specific packaging applications and production requirements.

ATOMAX wrap-around case packers are designed for demanding 24/7 production environments in the dairy, meat, chemical and other industries.

The ATOMAX system is a fully automatic case packing solution that forms the case, prepares and groups the incoming products, loads them into the case, and folds and seals the case around the product group.

The machine operates automatically using PLC-based controls and predefined production programs. High-speed versions are servo-driven to provide precise motion and high production capacity.

Case type: flat pre-cut cardboard blank.

Case sealing: hot-melt adhesive.

ATOMAX is an indexing-motion case packer that can be manually adjusted for different case dimensions. Tool-free format changeover can be completed in approximately 20 minutes.

Automatic format changeover is available upon request.

ATOMAX DUO is a high-speed indexing wrap-around case packer designed for fully automated secondary packaging. The system achieves a capacity of up to 20 cases per minute by loading two cases simultaneously.

The incoming product flow is divided between two preparation and loading positions. Two cases are loaded at the same time and then closed and sealed sequentially with hot-melt adhesive, providing an efficient solution for high-output packaging applications.

ATOMAX DUO is designed for demanding 24/7 production environments in the dairy, meat, chemical and other industries.

The system operates automatically using PLC-based controls and servo-driven motion to achieve precise product handling and high production capacity.

Case type: flat pre-cut cardboard blank.

Case sealing: hot-melt adhesive.

ATOMAX DUO is an indexing-motion case packer and can be manually adjusted for different case dimensions. Tool-free format changeover can be completed in approximately 20 minutes.

Automatic format changeover is available upon request.

The loading module is equipped with a robotic pick-and-place system that picks a complete collated group of incoming cups and transfers it into the prepared tray. The end-of-arm tooling is designed according to the specific characteristics of the product and can use vacuum suction cups or mechanical grippers for safe and reliable handling.

• Separate modules – tray forming and loading are performed by two individual modules connected by an appropriate conveyor.
• Compact version – the tray former and loading module are integrated into a single machine housing.
• Integrated version – the COMBYPACK system is integrated directly with the primary packaging machine. In this configuration, the pick-and-place module picks the cups directly from the nests at the filling machine discharge and places them into the formed tray.

COMBYPACK is available in single-format or multi-format configurations. The multi-format version uses exchangeable format tooling to accommodate different product and tray sizes.

Format changeover can be implemented on either one or both modules. The combined servo-pneumatic version provides an optimized solution with a capacity of up to 22 trays per minute, depending on the required cup loading pattern.

A high-speed full-servo version is also available, with a capacity of up to 40 trays per minute. All main motion functions are servo-driven for precise and reliable operation.

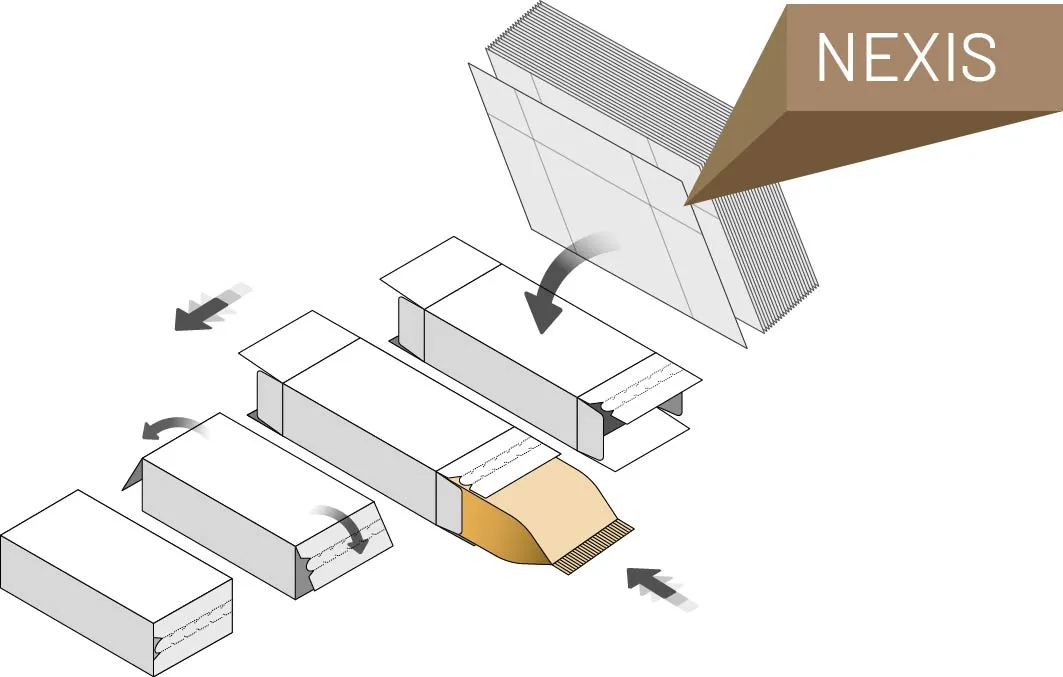

NEXIS is a side-load case packing system available in two configurations:

• Medium-speed version – indexing-motion system with a capacity of up to 50 cases per minute. It can be configured for single or double loading and can handle either individual products or grouped products.
• High-speed version – continuous-motion system designed for individual products or grouped products, with a capacity of up to 150 cases per minute.

All NEXIS configurations feature a simple and accessible design that facilitates operation, cleaning and maintenance throughout the machine's service life.

NEXIS can be adjusted to accommodate different case and product dimensions.

Format changeover is performed manually using rulers and position counters for precise and repeatable adjustment.

Format changeover time: up to 20 minutes.
